Overview #

OpenHVX is an open-source orchestration platform for multi-tenant Hyper-V infrastructures. It provides a unified control plane to manage virtual machines, quotas, and networking across distributed hosts, built on a lightweight and modular design.

⚠️ Active Development Notice: OpenHVX is under active development and not yet production-ready. Expect rapid iteration and potential breaking changes between releases. Community testing and contributions are highly encouraged!

Architecture #

OpenHVX separates orchestration and execution into clear layers.

The architecture is divided into two functional layers:

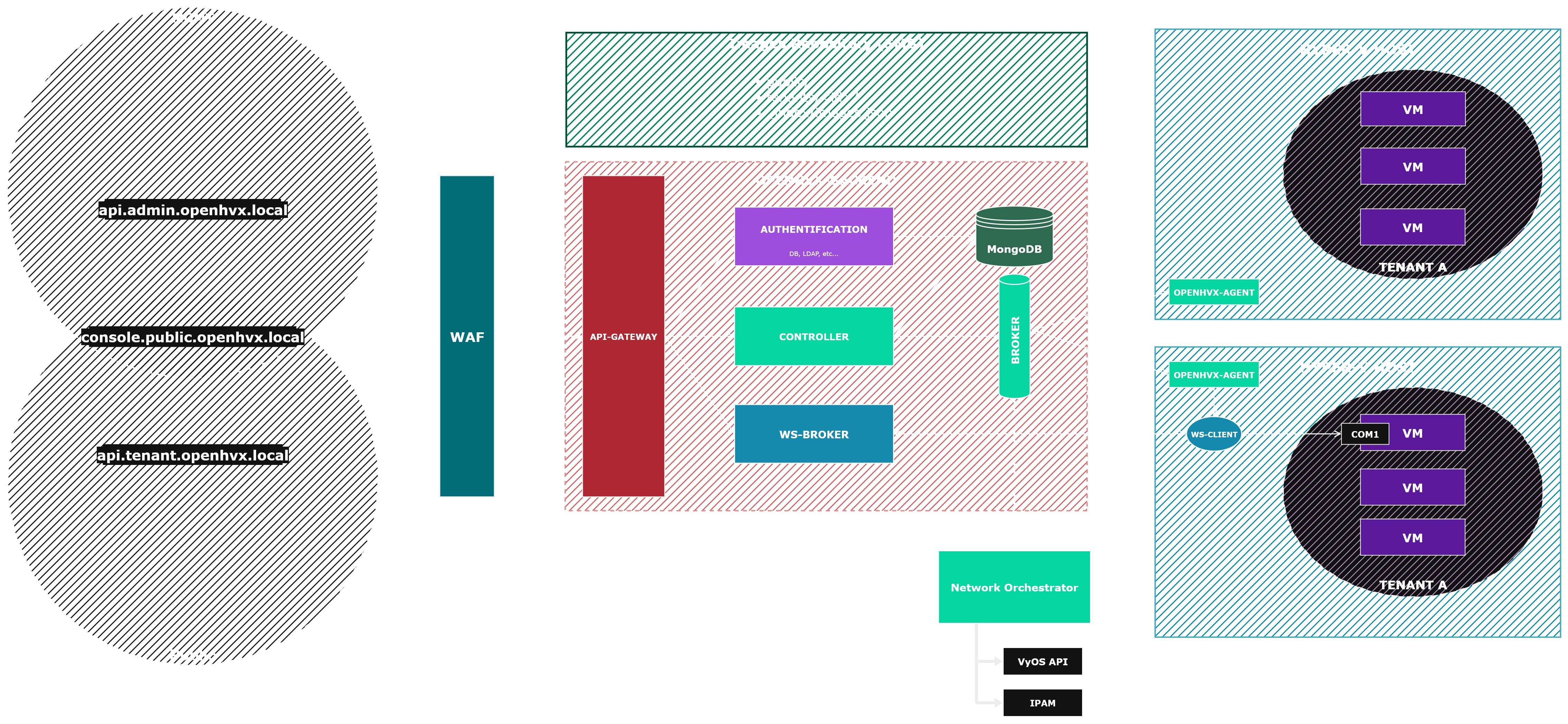

Architecture Diagram #

• Control Plane: Includes the API Gateway, Authentication Service, Controller, WS-Broker (console tunneling), MongoDB, and RabbitMQ. It handles orchestration logic, workflows, multi-tenancy and quota enforcement.
• Data Plane: Consists of lightweight PowerShell Agents running on Hyper-V hosts. Agents execute tasks, collect inventory, and stream console sessions.

The design emphasizes asynchronous communication, tenant isolation, and extensibility through modular services.

Features #

• VM Lifecycle: Create, edit, clone, and manage VMs with cloud-init and serial console access.
• Quotas: Per-tenant CPU, RAM, storage, and VM limits with atomic reservation (hold → execute → release).
• Multi-Tenancy: Logical separation of compute, storage, and network resources per tenant.
• Networking: Automated provisioning via VyOS API and IPAM integration for NAT, routing, and isolation. (Still under development)
• Authentication: Admin and tenant login flows with JWT tokens and different audiences.
• Agents: Lightweight, host-based agents for secure orchestration and telemetry.
• Extensible: Modular microservice architecture, event-driven.
• Modern UI: Specific UI for tenant & admin scope.

User Interface #

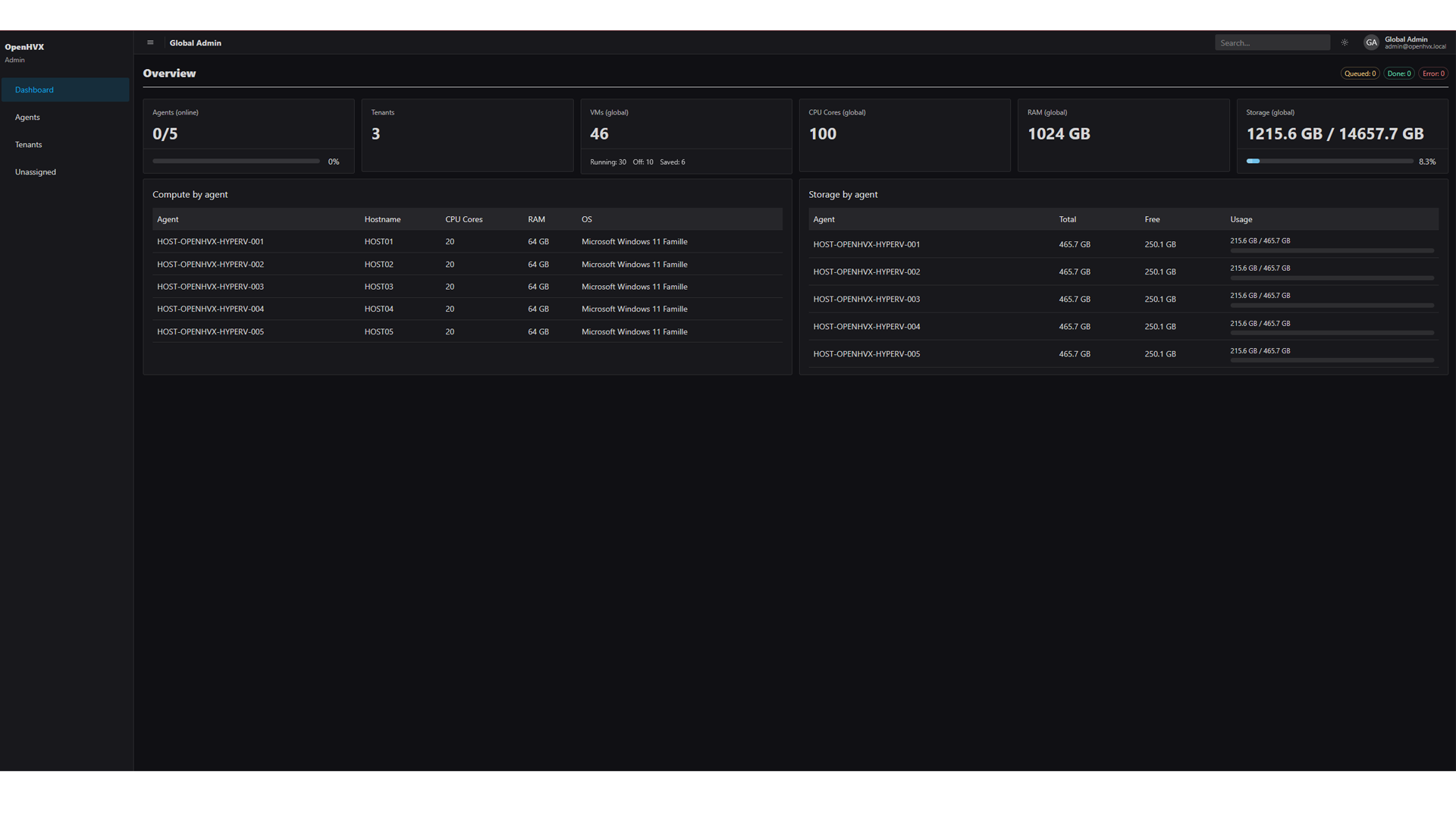

Admin Dashboard #

The admin dashboard provides a global overview of tenants, resources, and running tasks.

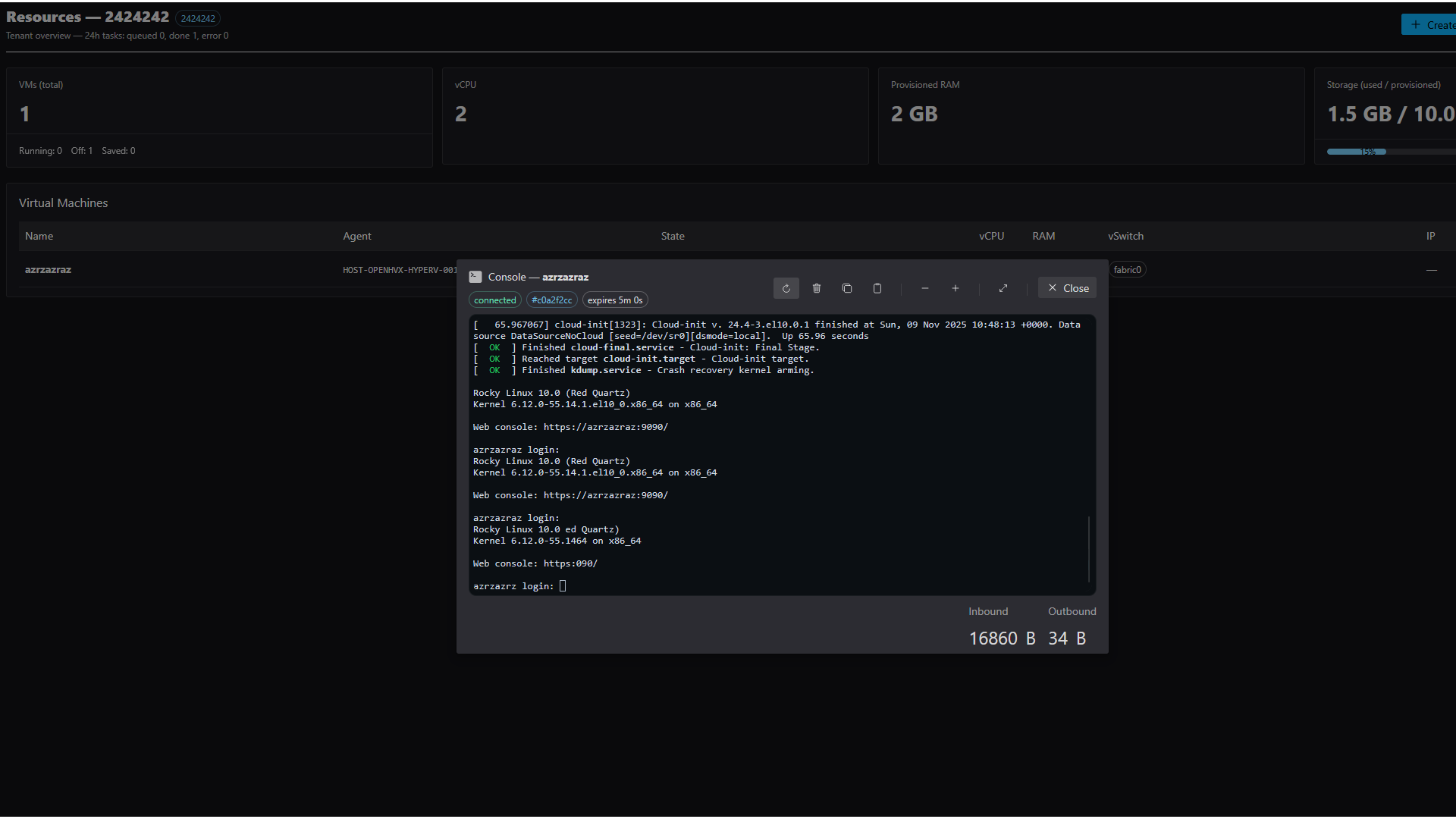

Serial Console #

Each VM exposes a live serial console, established as a tunnel between the client browser and the Agent, with the WebSocket Broker acting as an intermediary relay.
The broker maintains secure, tenant-scoped channels, ensuring that only authenticated users can attach to their own virtual machines.

This architecture provides near real-time console streaming, independent of the hypervisor’s native UI or RDP, and works even in fully headless environments.

🤝 Contributing #

We welcome contributions from the community! Whether it’s documentation improvements, feature suggestions, or bug reports — every input helps make OpenHVX better. Visit the GitHub organization to get started.
